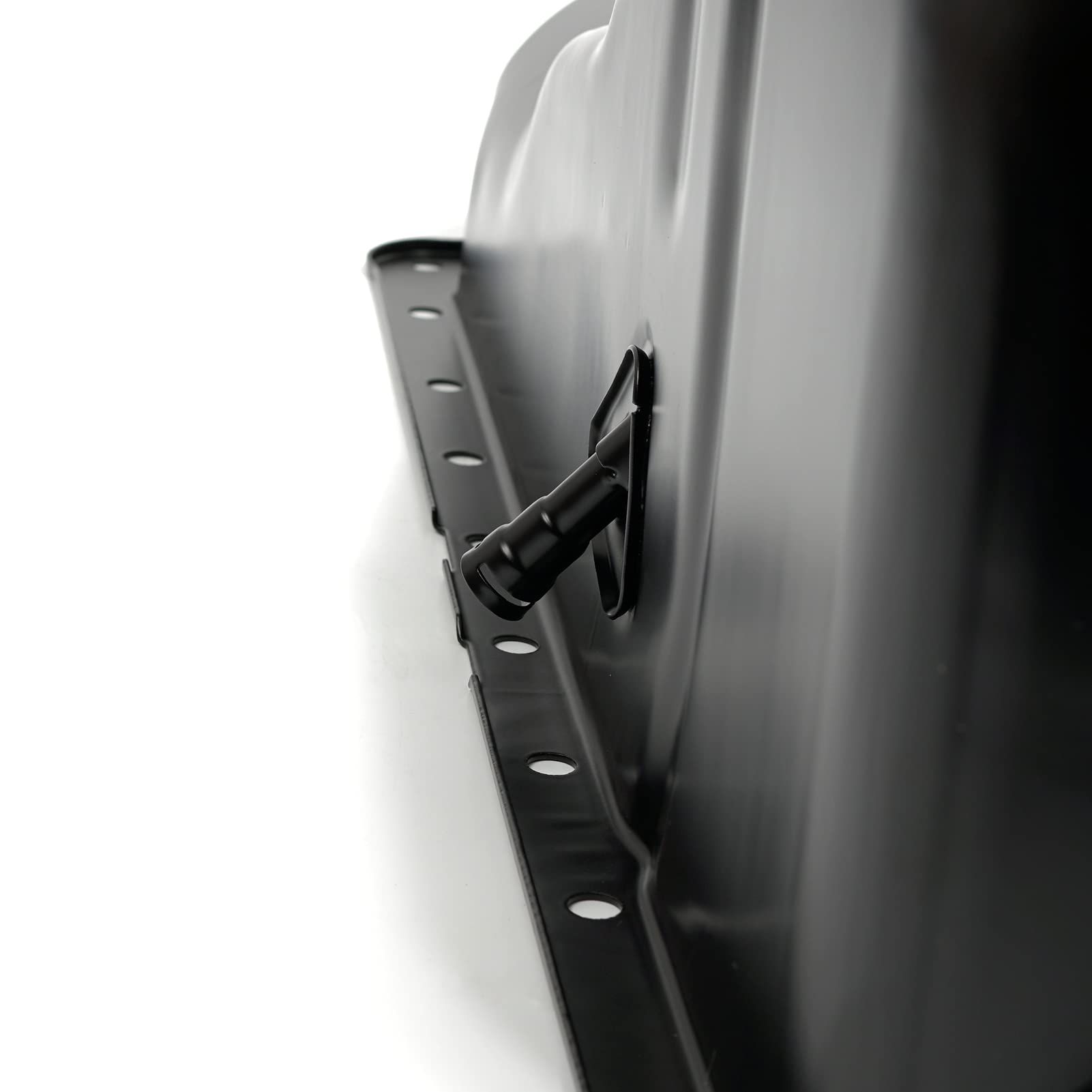

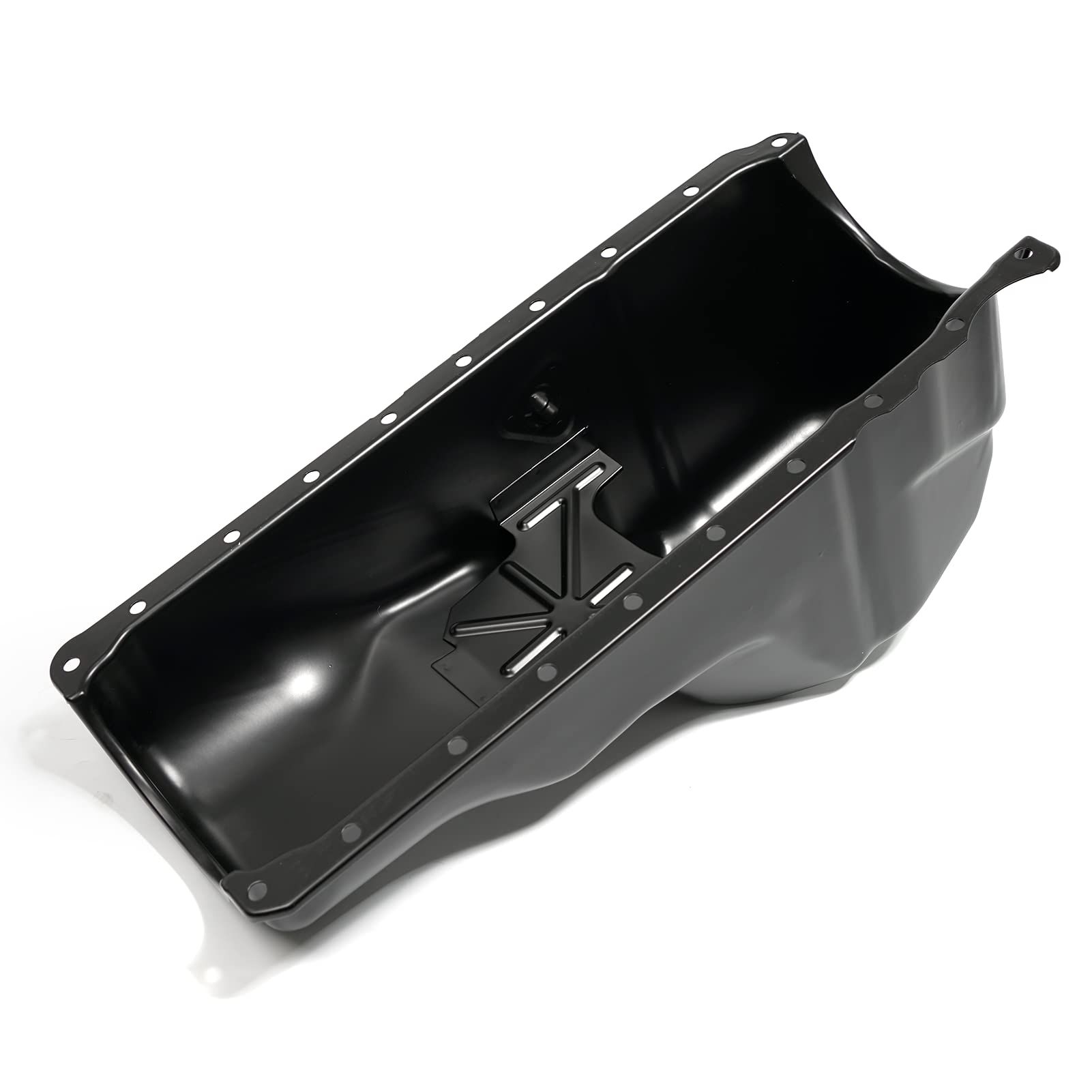

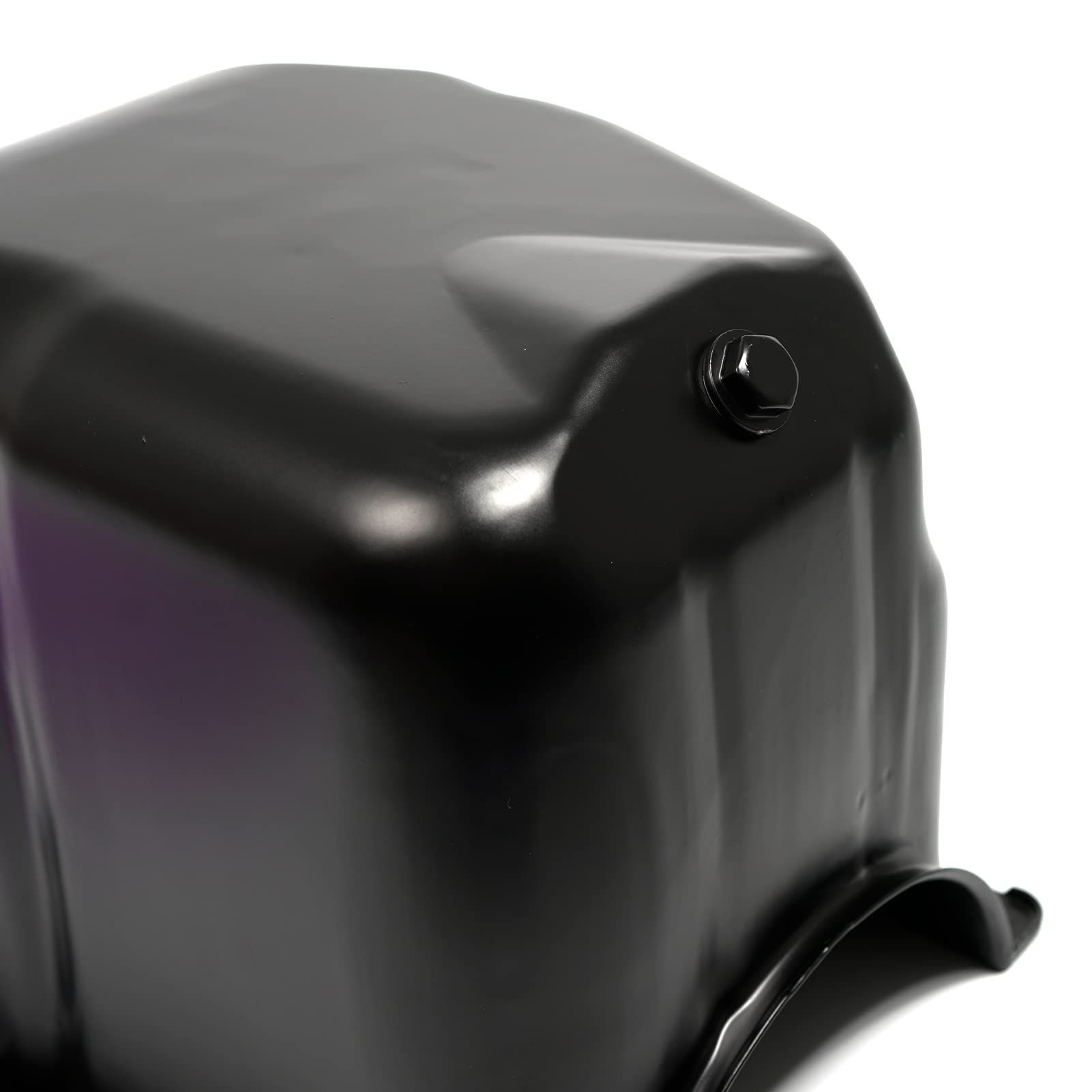

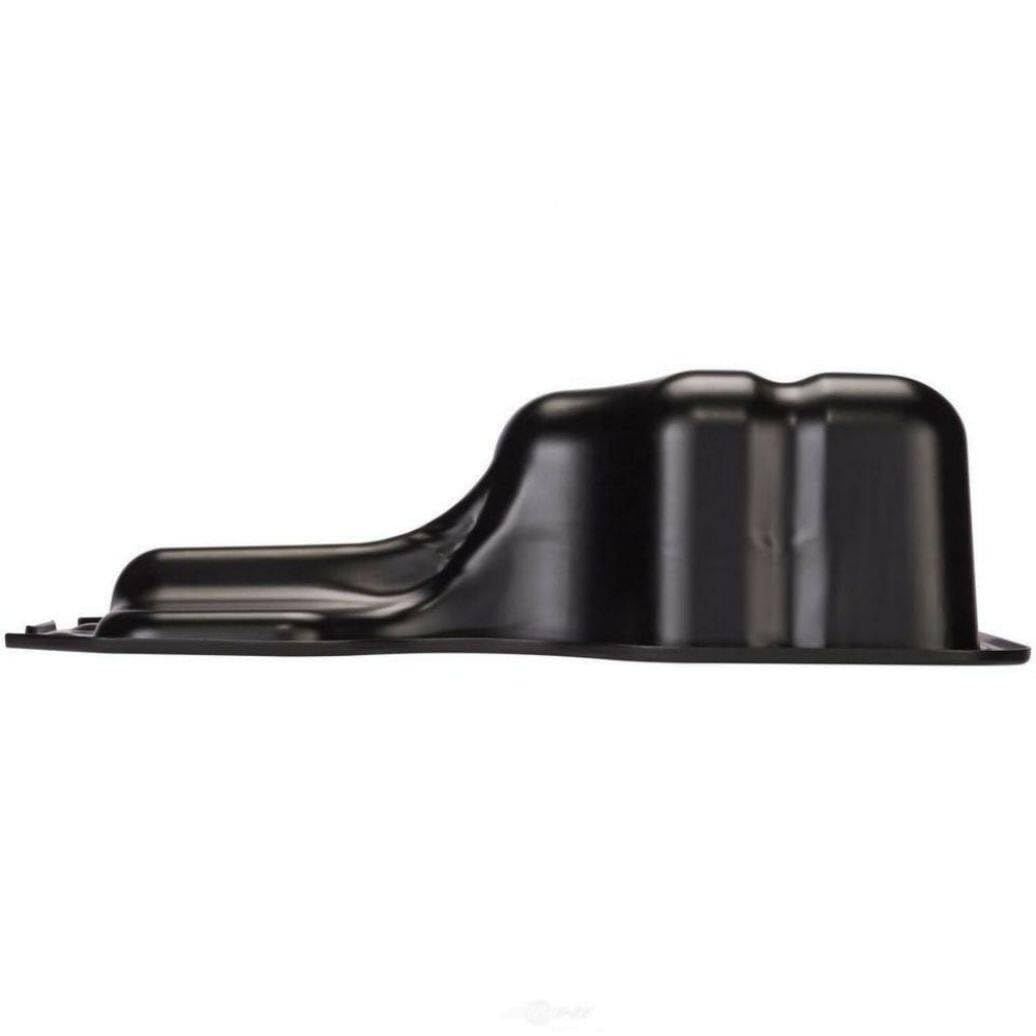

Stamping Steel China Factory Engine Oil Pan 10240721 264138
All the oil pan was made by the steel sheet plate.The thickness can be from 0.8mm to 4mm.
The capactiy of the engine oil pan can be reach to length at 1800mm ,width:800mm with heigh:600mm
| 1.Raw material steel sheet coil incoming test |
| 2.Decoiling for the steel coil |
| 3.Stamping workshop for engine oil pan drawing |
| 4.Engine oil sump Stamping mold production Setup- get data from the steel stampin oil sump |
| 4.1 Stamping press mold design |
| 4.2 The simulation of the oil pan deep drawing production process |
| 4.3 Oil pan deep drawing mold production by casting and CNC machine |
| 5. Trial production for engine oil pan |
| 6. Welding for the reinforcement and baffle |
| 6. Shield welding for the extra package of the oil pan |
| 7. Oil plug welding onto the engine oil sump |
| 8. Leaking test after the oil seat and plug fitment on the oil pan |
| 9. 3D laser cutting machine for the sample |
| 10.Surface treatment for the engine oil pan |
Product parameters:
Model NO.:264138
Certification:TS16949, ISO 9001
Warranty:12 Months
Material:Steel
Type:Wet Oil Pan
Raw Material:Cold Roller Steel
Surface Treatment:Electrophoresis
Production Process:Press Drawing
OEM Supplier:Yes
Clean Test:Yes
