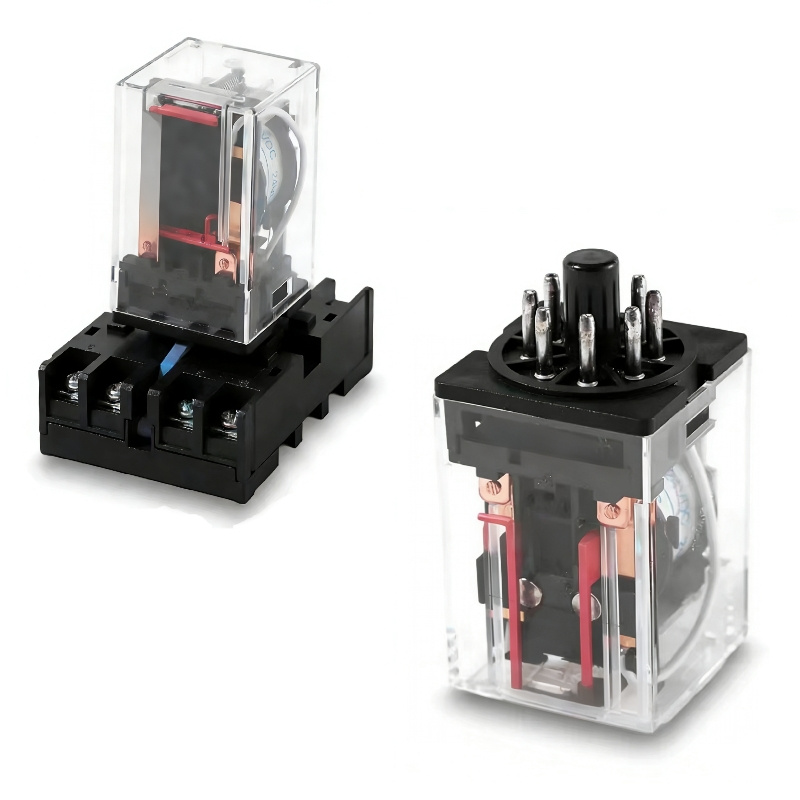

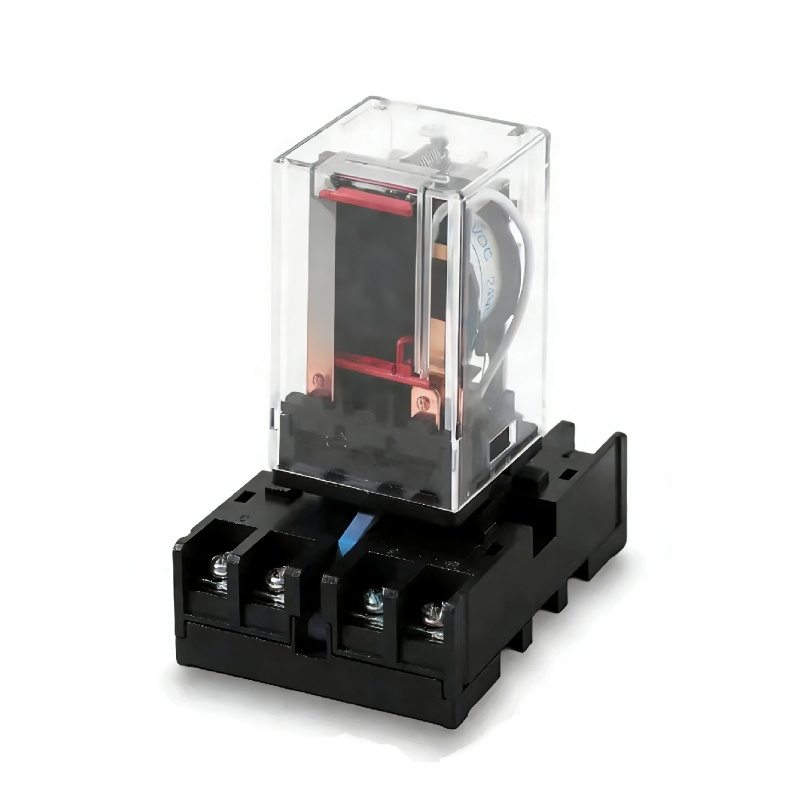

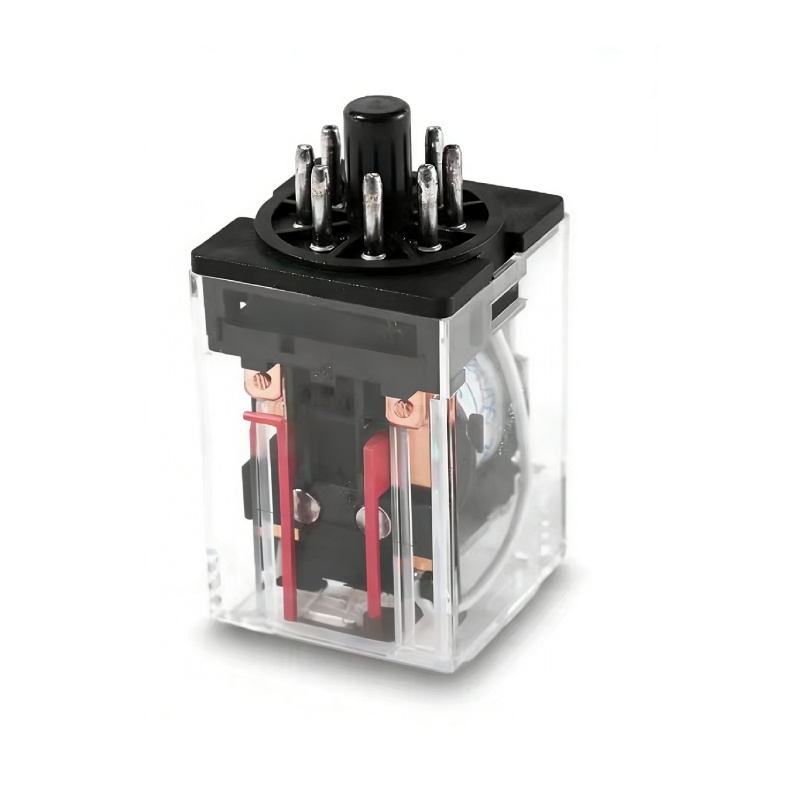

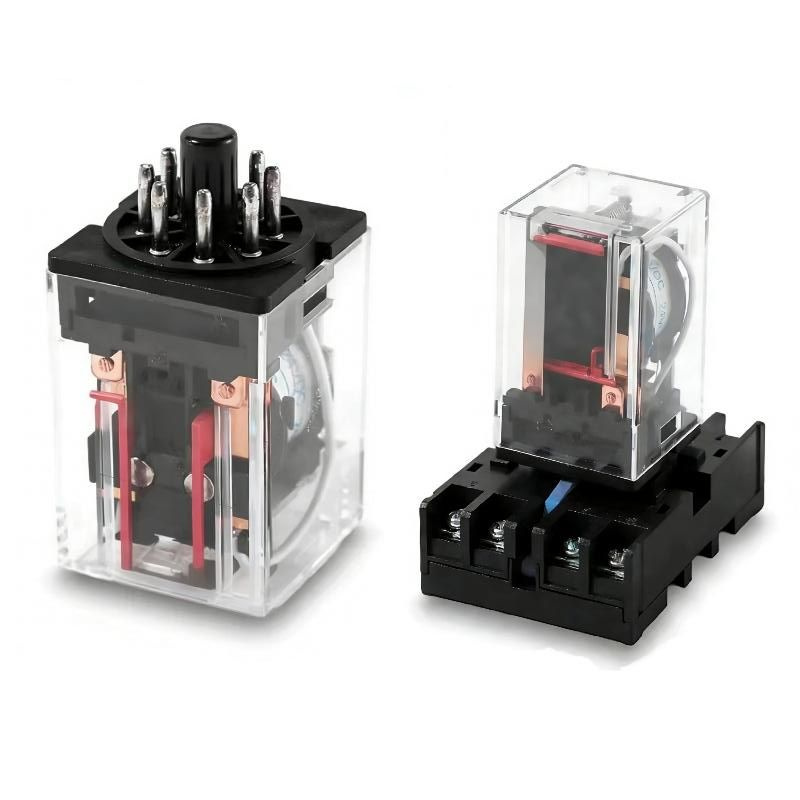

Universal Relay Bypass Switch Kit for Automotive and Home UseModel NO. small socket base

Applications:
Suitable for applications where function and time requirements are known.
Time switch, it is possible to be used for pump delay time after switching , heating off,
switching off fans

Technical parameters

CONTACT DATA

Contact combination	2C3C
Initial contact resistance	≤100mΩ (1A 6VDC)
Contact load (resistive)	10A 250VAC/30VDC
Maximum switching current	10A
Max. carrying current	2A
Maximum switching voltage	250VAC/30VDC
Contact material	Silver Alloy
Insulation resistance	100MΩ (500VDC)
Release time	1500VAC, 1min. between contact and coil 500VAC, 1min. Between disconnected contacts
Action time	≤20 ms
Release time	≤20 ms
vibration	10-55Hz, 1.0mm
life - Electrical - Mechanical	1×105 ops (at rated coil voltage) 1×107 ops
Temperature range	-25ºC ~ +55ºC
