Universal LED Reversing Radar with 4 Sensors Car Parking Sensor-Reversing Radar-Wuhan Circle Star Auto Parts Co., Ltd.

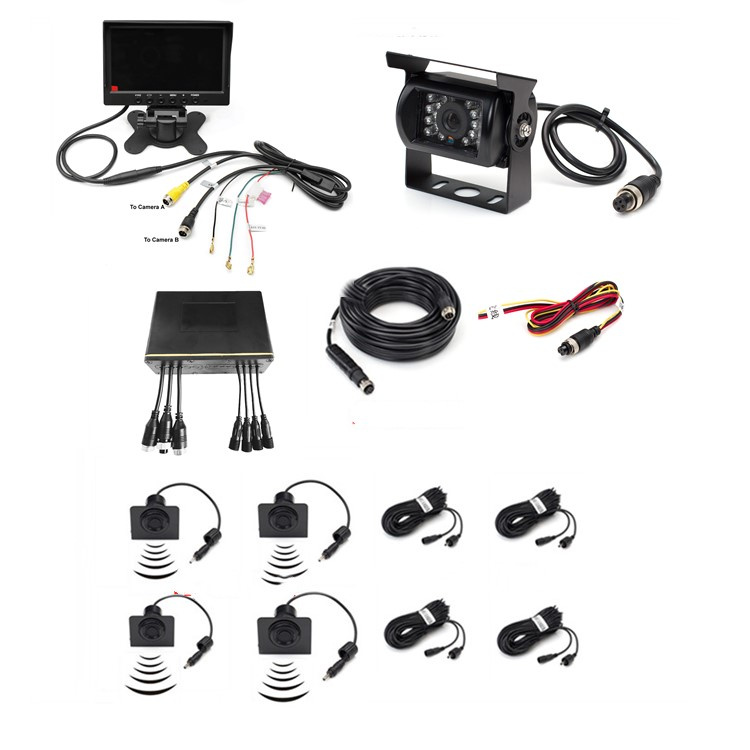

Universal LED Reversing Radar with 4 Sensors Car Parking Sensor

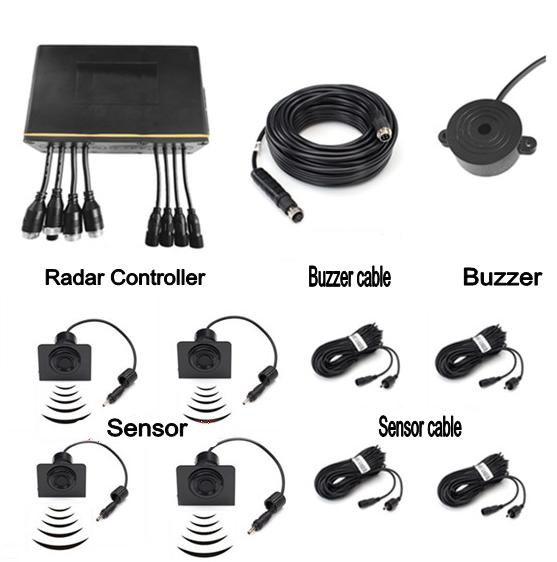

MS-203 Ulta-sonic Sensor kit

Radar controller

Adapt to wide voltage, can work in 24V and 12V.
Special waterproof design, waterproof level IP67.
Special plug design, stable and reliable.
It has a lightning protection design and contains a 600W TVS tube.
Stand-alone power consumption: no more than 1 watt.
Industrial grade working temperature design: low temperature -40°, high temperature 80°C.
Dimensions: length x width x height=166*100*45.6mm.
Can adapt to a variety of usage methods (different electrical board configurations)
A. Can bring its own buzzer/voice box
B. Can bring all kinds of displays
C. Can be equipped with camera and TFT display
D. The number of probes is up to 8
The software logic can be customized for customers, and the detection accuracy can reach 1cm.

Dedicated buzzer/voice box (the built-in display can also produce sound)

(Outdoor type)
It is directly connected to the control box, and the length of the cable is not limited by the vehicle type.
(Outdoor type) Waterproof design, waterproof level IP67.
The volume is not less than 100Db.
Industrial grade working temperature design: low temperature -40°, high temperature 80°C.
Metal bracket, easy to install and fix

There is no need to punch holes, and it is convenient for small screws to install.
The threaded probe is designed to adapt to various metal bumpers and thicknesses.
Waterproof design, waterproof level IP67.
Working frequency: 40KHz.
Industrial grade working temperature design: low temperature -40°, high temperature 80°C.
Beam angle: single angle 60-80 degrees.

REQUEST NOW

Product parameters:

Model NO.：MS-203

Kind：Obstacle Detection Radar

Test Distance：2.5-0.2m

Warning Type：Bumming

Working Principle：Frequency Modulated Continuous Wave

Operating Temperature Range：-20°C~+80°C

Technich Type：Supersonic

Installation Method：Adhesion Type
